Corrugating Machinery
Corrugator line wet end and dry end
Single Facer Machine
Complete with Corrugating Roll, Pressure Roll, and Glue Unit
Adjustment for corrugated roller, pressure roller, and glue roller adopt pneumatic system
Preheater
The diameter available is Φ600mm, Φ900mm, Φ1000mm, Φ1100mm. The surface of all rollers are well treated by grind and plated halrd chrome, glabrous and durable.
Double Facer Machine
The design speed is 200-250m/min. With tension control for upper cotton belt by pneumatic cylinder, and the drive section adopt gear box, drived by electromagnetic speed control motor.

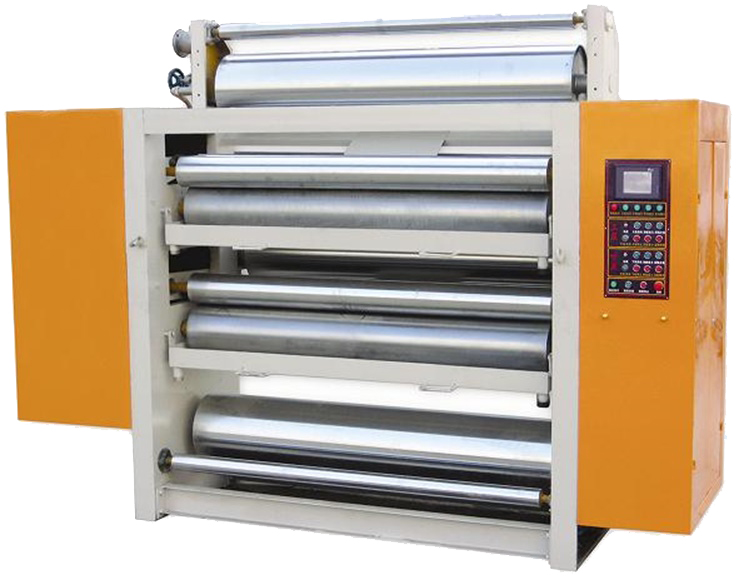

Double Glue Machine
Available with speed 150m/min and 250m/min.
Auto controlling with PLC according to change of speed.
NC Slitter
Quick change order within 3-8sec. Automatic synchronize with the corrugated lines. Use thin tungsten carbide coated blade lifetime can reach over 8 million meters.
NC Cutter Helical Knives
Adopt grey cast iron to keep machine strong and stable. Adopt Germany KEB servo system. Adjustable high precision non-gap gear to ensure cutting precision. Memory of 180 orders.
Automatic Up Stacking Machine
The design speed is 200-250m/min. Max. stacking height is 250mm and max. stacking length is 3500mm. Adopt Vacuum System after NC Cutter to reduce the heat of the paperboard. Automatic change order in 5 seconds, automatic counting and automatic horizontal paperboard delivery.
